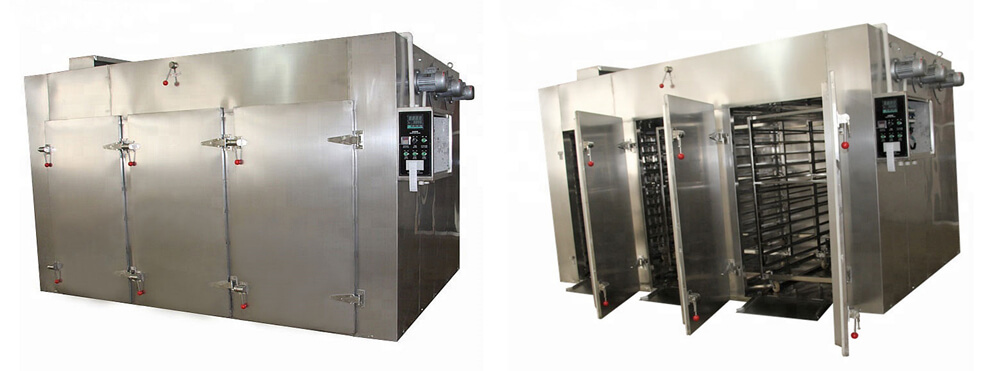

Vegetable Drying Oven Introduction

The vegetable drying oven adopts circulating hot air to dry vegetables. The dryer is equipped with low noise, high temperature-resistant axial flow fan, and an automatic temperature control system. The whole circulation system is fully closed, and most hot air circulates in the oven, having high thermal efficiency and saving energy. The vegetable drying machine is suitable for drying various kinds of vegetables, such as radishes, potatoes, sweet potatoes, mushrooms, chili, garlic, ginger, long beans, cauliflower, bamboo fungus, bamboo shoots, etc. and the nutrition values of vegetables can be retained after drying.

Advantages of Vegetable Drying Oven

1. Utilizing forced ventilation function and adjustable air distribution plates, ensuring temperature balance in the oven.
2. Multiple heat sources for your choice: steam, electricity, or electricity-steam dual-use.
3. Automatic constant temperature control, automatic alarm over the limit, reliable operation.
4. The inner wall of the dryer machine is fully welded and adopts circular arc transition at all transitions, has no dead angle, easy to clean.
5. Unique guide rail sealing device, ensuring the sealing performance of the vegetable dryer, helping thermal insulation, and preventing pollution.
6. Adopt filters at the air inlet and outlet, ensuring the cleanliness of the circulating air.
7. All the spare parts in the oven can be disassembled and assembled quickly, easy to clean and maintain.
8. The vegetable dryer machine is in compliance with GMP requirements.
9. Uniform trolley size and tray size. Baking tray dimensions: 640*460*45mm.
10. The oven dryer can be customized according to your requirements.

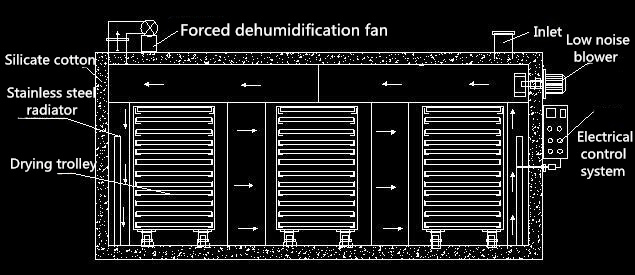

Working Principle of Hot Air Drying Oven

Hot air circulating oven adopts steam or electricity as a heat source, and axial flow fan to circulate air. After heated by the radiator or electric heater, the hot air delivered by the circulating fan enters the drying room through the air duct and transfers heat to the materials. Fresh air is replenished through the air inlet while wet air is discharged through the air outlet. By the constant replenishing of fresh air and discharging of wet air, the proper relative humidity in the drying oven is maintained.

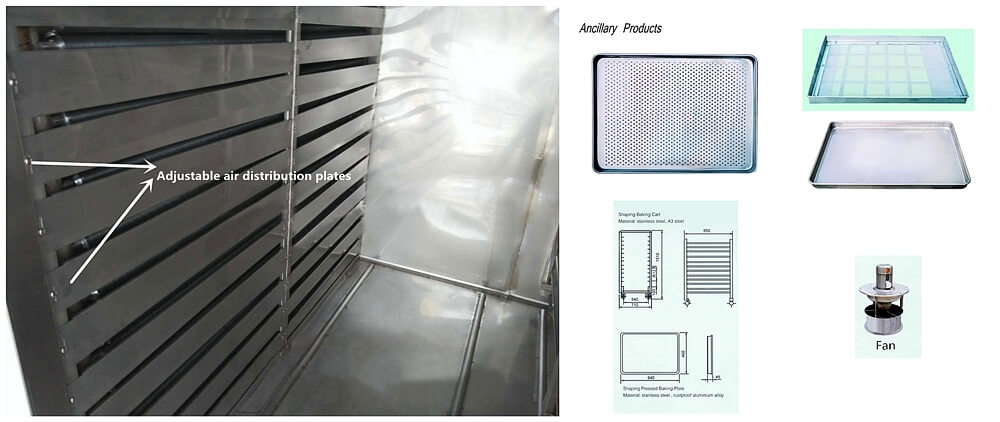

How to Adjust the Temperature Balance in the Dryer Oven?

On the two sides of the drying oven, there are adjustable air distribution plates. Adjusting the gap between the plates can achieve temperature balance in the oven. If the temperature is low, increase the gap near the point; If the temperature is high, reduce the gap properly. Continue adjusting until reaching the temperature balance.

Technical Parameters of Electric Vegetable Drying Oven
