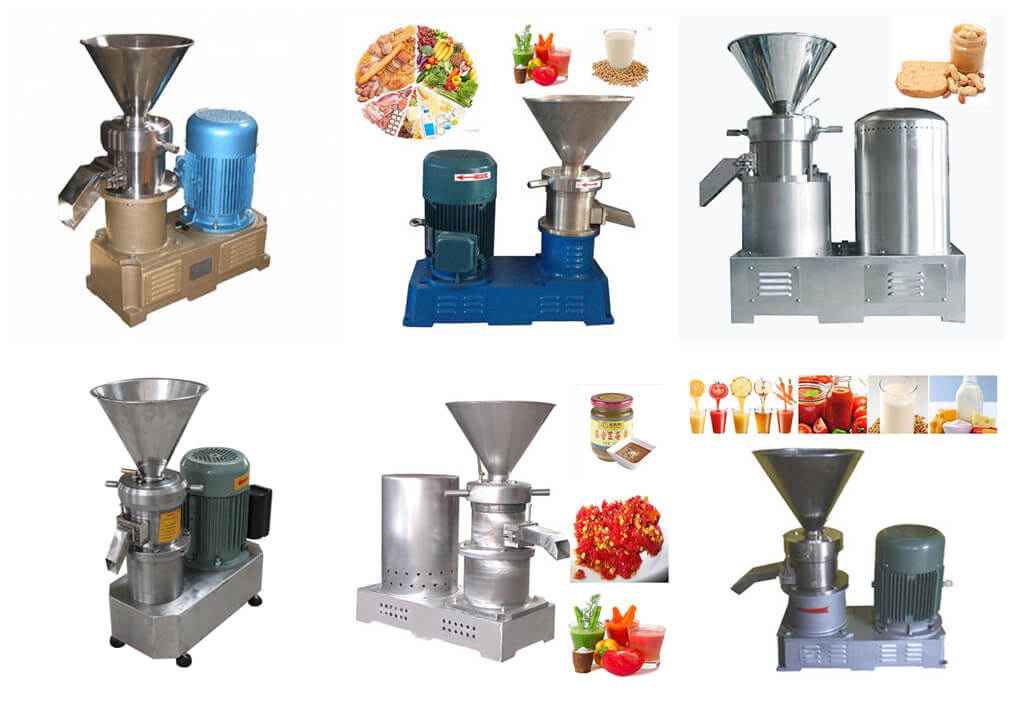

Paste Grinding Machine Introduction

The paste grinding machine also called the colloid mill is a newly designed equipment that introduces the latest technology, it has 2 kinds: one is semi-stainless steel with the main part made of stainless steel; the other is made of full stainless steel. The customers can choose the one according to their request. Our paste grinding machine enjoys great popularity in many industries, such as the food industry, chemical industry, medical industry, etc.

Model	Capacity (kg)	Fineness	Power (kw)	Weight (kg)	Dimension (mm)
GN80	50-80	50-100	4	150	640*410900
GN110	100-200	100-200	7.5	175	700*430*980
GN130	300-500	100-200	11	285	830*440*1100
GN180	400-800	100-200	18.5	340	830*490*1100
GN240	600-1000	100-200	37/45	1300	1320*500*1280
GN300	600-1800	60-200	75/90	1600	1440*630*1420

Paste Grinding Machine Advantages

1. Made of semi-stainless steel or full stainless steel, clean and sanitation
2. Compact design, utility model, and beautiful appearance
3. Good sealing, stable performance, easy to operate and maintain
4. High automatic degree, high yield, good reliability
5. Widely usage, high production efficiency, and long life service

Paste Grinding Machine Working Principle

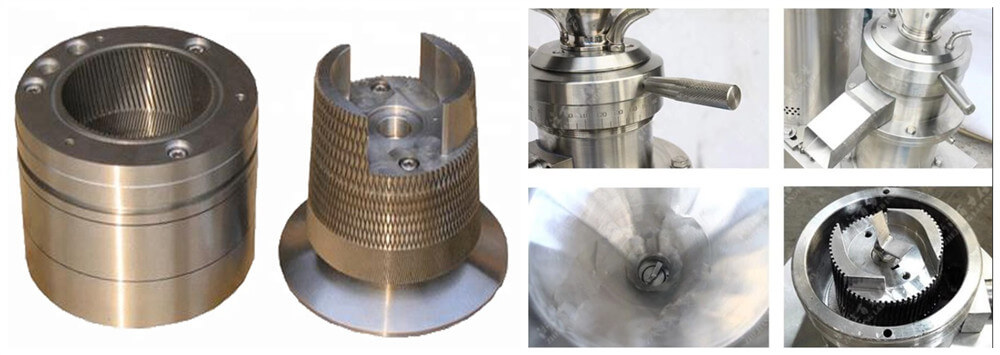

Fluid or semi-fluid materials through the high-speed relative motion of the rotor and stator, so material get the strong shearing force, frictional force, and high-frequency vibration, effectively being crushed, emulsified, and homogenized to get the fine processing products.

Paste Grinding Machine Applications

Paste grinding machine is widely used in many industries as follow:
1. Food industry: Dairy products, chocolate, bean paste, jam, peanut butter, cream drinks, etc.
2. Chemical Industry: pigments, lubricants, spices, dyes, emulsified asphalt, emulsifying rubber, catalysts, paints, coatings, etc.
3. Pharmaceutical industry: cod liver oil, confidentiality, athletes paste, pollen, etc
4. Daily chemical industry: shoe polish, cosmetics, toothpaste, soap, detergent, balsam, etc
5. Other industries: construction industry, paper industry, plastic industry, battery industry and so on

The Maintenance of Paste Grinding Machine

1. During the operation of the paste grinding machine, please make sure the bearing temperature will not exceed the environment temperature of 35℃， the highest temperature should not be more than 80℃.
2. If there is an abnormal voice during the working process, please immediately stop to check.
3. Regularly check the wear of the axle sleeve, please change it in time after bigger wear
4. If the paste grinding machine is a long time of no use, you need to take part in all parts of the pump and dry water, installing rotating parts and combining coats with grease, to properly preserve.

Bone Paste Grinding Machine Working Video

Allied Machine: Bone Crushing Machine
