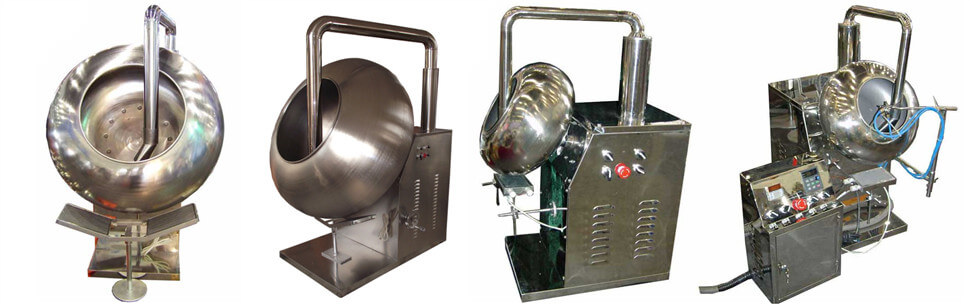

Sugar Coating Machine Introduction
Amisy sugar coating machine is widely used in the pharmaceutical industry, candy processing industry, and snack food industry, and it is also used to process many kinds of grain food like Japan bean, hollow beans, beans fishskin peanuts, Chocolate beans, Chocolate peanut, candied peanut in the variety of food coating.
Sugar Coating Machine Features
The machine is composed of rolling pan, machine frame, transmitting system, and heating system. This machine is more suitable for coating of non-circular material or high viscosity material. The cooperation of motor and reducer can reduce the processing speed to an easy operation state. The sugar tablet will have a bright and smooth surface. Our systems are able to deliver a high-quality sugar coating basic for hard candy or soft candy.
Sugar Coating Machine Highlights
1. GMP conformity
2. With the latest technology and unique design, which has a better effect than the old model
3. 304 Stainless steel
4. Small land occupancy and investment
5. Just needing 1-2 workers to operate, labor-saving
6. Machines（voltage）can be customized according to your requirements
AMS-BY-300 & AMS-BY-1000 Sugar Coating Machine Video
Notes:
Auxiliary equipments: spray tank, pump,temperature controller,cart ,etc.
Technical Parameters of Sugar Coating Machine
Model | AMS-BY-300 | AMS-BY-400 | AMS-BY-600 | AMS-BY-800 | AMS-BY-1000 |
Capacity | 2 kg/per time | 5 kg/per time | 15-30 kg/per time | 50-100 kg/per time | 70-150 kg/per time |
Pan Diameter | 300 mm | 400 mm | 600 mm | 800 mm | 1000 mm |
Main Motor | 0.75 kw | 0.55+0.75 kw | 2.2 kw | 2.2 kw | 2.2 kw |
Rotational Speed | 46 r/min | 46 r/min | 32 r/min | 32 r/min | 32 r/min |
Angle | 15°- 45° | 15°- 45° | 15°- 45° | 15°- 45° | 15°- 45° |
Weight | 37 kg | 38 kg | 200 kg | 280 kg | 300 kg |
Dimension (L*W*H) | 480*360*700mm | 480*360*700mm | 650*600*920mm | 800*750*1300mm | 1000*900*1400mm |
