Tomato Paste Production Line Introduction
With advanced technology and elaborate workmanship, we provide turnkey projects for tomato paste production. The handling capacity of the tomato paste production line is 1-2 tons per hour. Based on your requirements, we can provide on-site installation, commissioning, and training services for you. With reasonable design and low energy consumption, our tomato processing equipment is your cost-effective choice.
Advantages of Tomato Paste Processing Line
- Fruit washing machine features high cleanliness, saving energy and water, and stable and reliable performance.
- Spraying devices, collection channels, and waste conveyors can be designed for the roller sorting machine.
- The insulating layer can be designed for the tubular preheater and tubular sterilizer.
- Various mesh size options for the fruit pulping machine in the tomato processing plant.
- Concentrator features small size, simple structure, convenient operation, cleaning, and maintenance.

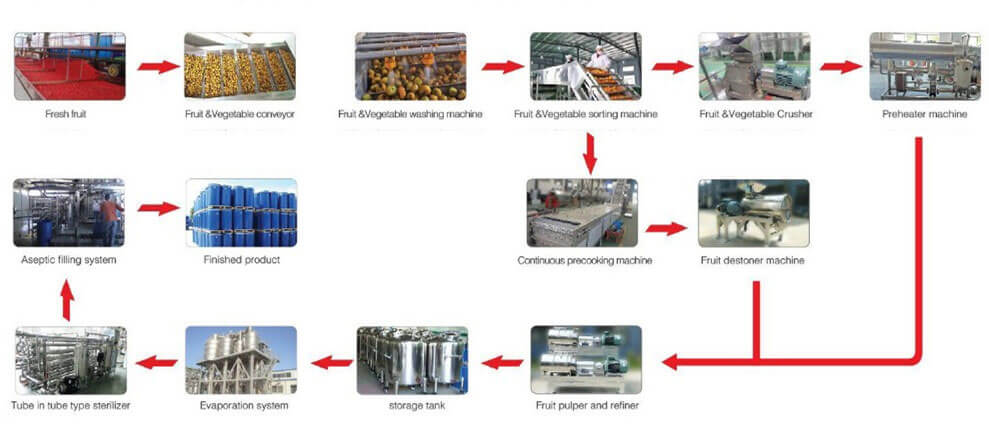

Working Flow of Tomato Paste Production Line
Fresh Tomato → Tomato Washing → Tomato Sorting→ Breaking → Preheating→Tomato Pulping → Vacuum Concentration → Paste Sterilization → Finished Tomato Paste
Main Equipment in Tomato Paste Processing Plant

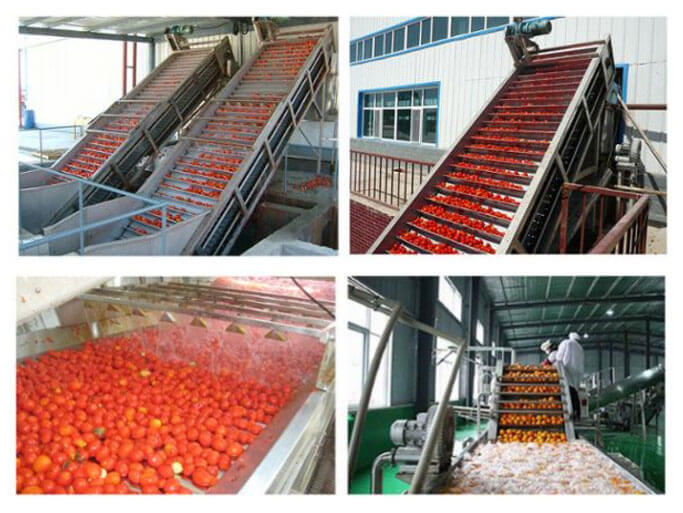

1. Surfing type washing machine
Tomatoes are washed with high-pressure water in the fruit washing machine. The scraper elevator conveys the cleaned tomatoes to the next procedure.

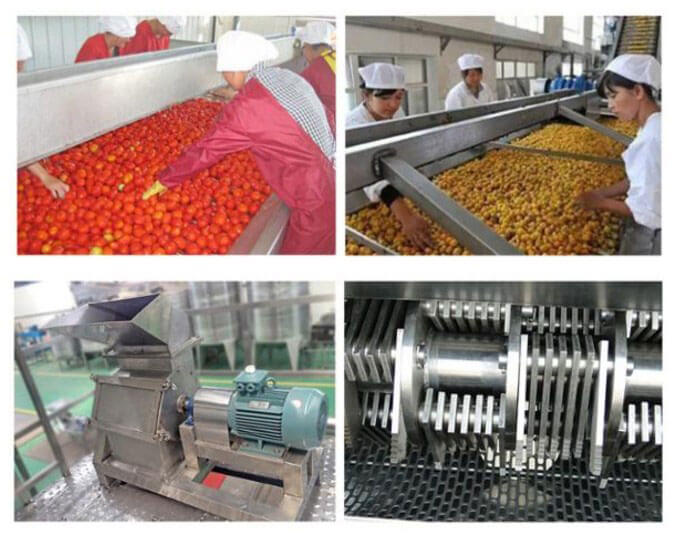

2. Roller sorting machine
Cleaned fruits enter into the machine from the feeding hopper, and rotate forward toward the outlet. Workers pick out the unqualified tomatoes to ensure the quality of the end product.
3. Broken Pump
Used for conveying and crushing tomatoes, and preparing for pre-heating and pulping.

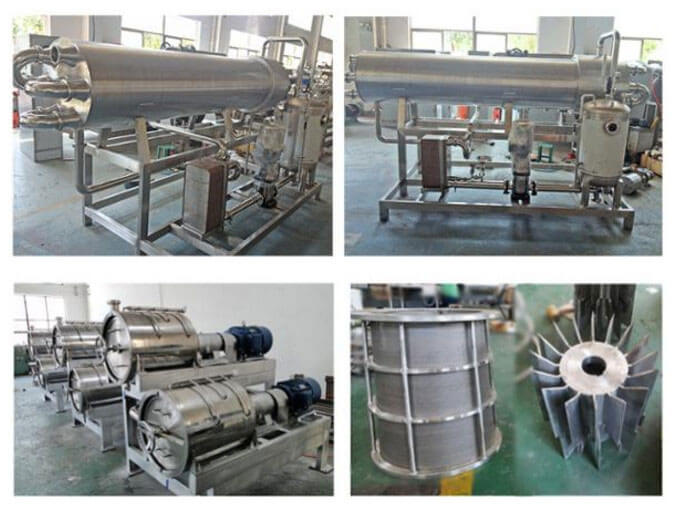

4. Tubular Preheater
The tubular preheater increases the temperature of the pulp by steam heating to soften the pulp and deactivate the enzymes.
5. Single-channel Pulping Machine
The single-channel pulping machine is used for the automatic separation of pulp and residue from crushed and preheated tomatoes. The material from the last procedure enters the machine through the feed inlet and spirals toward the outlet along the cylinder. By centrifugal force, the material is pulped. The pulp passes through the sieve and is sent to the next procedure, while the skin and seeds are discharged through the residue outlet, achieving the aim of automatic separation. The pulping speed can be changed by changing the sieve and adjusting the lead angle of the scraper.

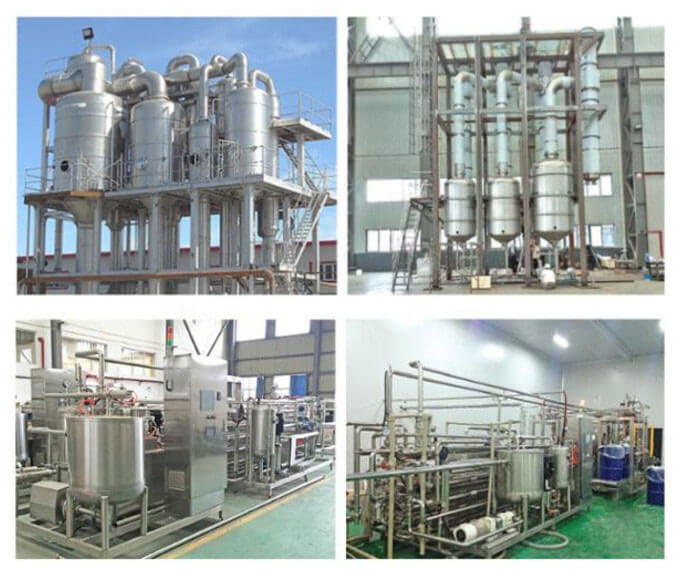

6. Vacuum Concentrating Boiler
This equipment is used for vacuum concentration of tomato pulp under low temperatures. Steam is fed into the jacket at the lower part of the boiler, making the material under vacuum boil and evaporate. A blender in the boiler helps strengthen the flow of the material.
7. Tubular Sterilizer
Tubular sterilizer increases the temperature of the concentrate by steam heating, achieving the aim of sterilization.
Technical Parameters of Tomato Paste Production Line
| Name | Model | Power | Dimension (mm) |
| Surfing Type Washing Machine | CXJ-2 | 1.47 kw | 2300 * 910 * 1600 |
| Roller Sorting Machine | GXJ-2 | 0.37 kw | 3000 * 700 * 900 |
| Broken Pump | TGF40-1A | 3 kw | 1710 * 380 * 340 |
| Tubular Preheater | YR-2 | / | 1405 * 615 * 1250 |
| Single-channel Pulping Machine | DJ1-2.5 | 4 kw | 1450 * 770 * 1523 |
| Temporary Storage Tank | 300L | / | 1200 * 650 * 650 |
| Vacuum Concentrating Boiler | JNS-1000 | 9 kw | 2800 * 2100 * 4410 |
| Screw Pump | GF40-1A | 3 kw | 1500 * 380 * 315 |
| Tubular Sterilizer | SJ-2 | / | 1405 * 615 * 1250 |
| Finished Product Tank | 300L | / | 700 * 700 * 1250 |
