Metal Detector Introduction

The basic function of the metal detector is to detect whether in the nonmetallic medium includes the metal impurities. The metal impurities existence directly will affect the product quality or possibly directly affects the important production equipment security. If food includes the metal impurities, it possibly directly will endanger the personal safety or the health.
The metal detector involves 4 series: H, L, P, T. It Is suitable to food, the medicines, the chemical industry, the plastic, the chemical fiber, mining and each kind of different application.

Characteristic of H, L, P, T metal detector

1. Examinations sensitivities are high

We can achieve the highest sensitivity of Fe: 0.6mm. The sensitivity is the best sensitivity when we lay aside the examination ball on the surface of the conveyer belt. The actual examination sensitivity is decided by detected production and the fieldwork environment.

2. Adaptation scopes are broad

The metal detector may adapt in high temperature, the low-temperature working conditions. In the quite bad working conditions, it similarly has the splendid sensitivity performance.

3. Adjustment of examinations parameters is convenient

The adjustment of examination parameter to the metal detector is convenient and direct-viewing. The uniformity and the stability of examination parameter are very good. In view of the same examination product, the examination parameter does not change along with time.

4. Waterproof dustproof performance is good

According to the order, it can meet the IP-65 waterproofing requirements.

Structure of Metal Detector

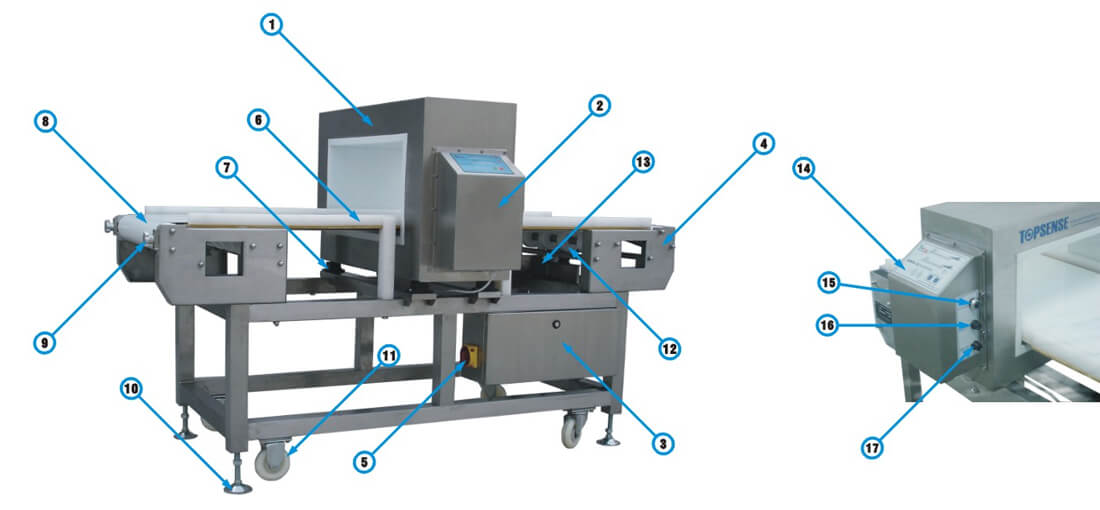

H series basic structure

1: detect head
2: Instrument box
3: Power and controller box
4: Frame
5: Switch
6: Oriented bar
7: Shock absorber
8: Conveyor belt
9: Conveyor adjust bolt
10: Sustainer
11: Wheel
12: Conveyor belt support wheel
13: Motor
14: Panel
15: Product effect adjust knob
16: Sensitivity adjust knob for channel 1
17: Sensitivity adjust knob for channel 2

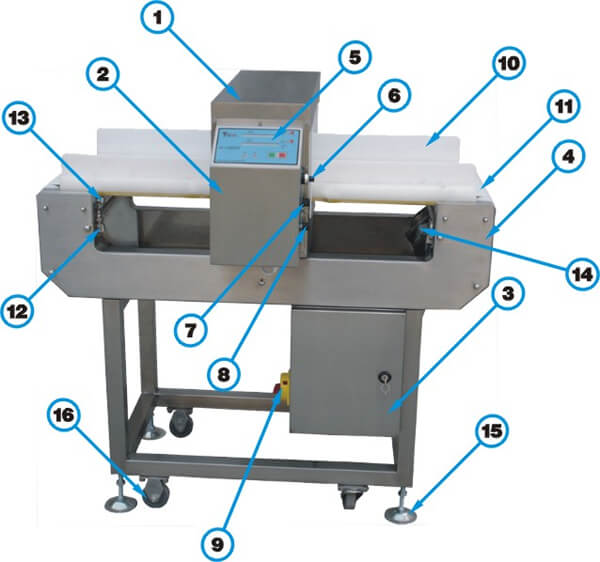

L series basic structure

1: detect head
2: Instrument box
3: Power and controller box
4: Frame
5: Panel
6: Product effect adjust knob
7: Sensitivity adjust knob for channel 1
8: Sensitivity adjust knob for channel 2
9: Switch
10: Oriented bar
11: Belt
12: Knot
13: Conveyor belt adjust bolt
14: Motor
15: Sustainer
