Quail Egg Shelling Process
Quail eggs prewarming------quail egg boiling -------quail egg cooling--------quail egg peeling and shelling
| Model | QEP-1 |
| Capacity | 1600-20000 pieces /h |
| Power source | 3.6 kW |
| Dimension | 14000*5500*1900 mm |
1. Quail Eggs Prewarming & Conveying
The whole quail eggs prewarming & conveying processes are carried out in a big prewarming trough which is used to soak the quail eggs, preventing the eggs from being broken. A conveyor is installed in the prewarming trough to deliver the quail eggs into the egg boiler.

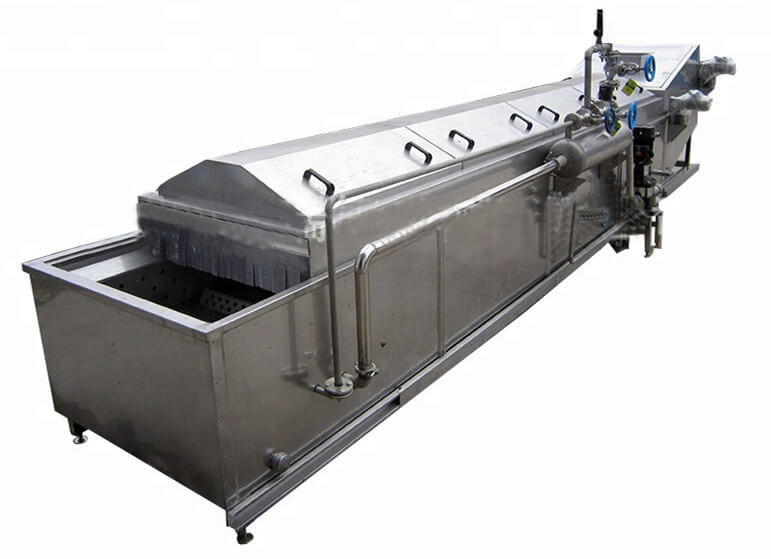

2. Quail Eggs Boiling
After the quail eggs are sent into the egg boiler, the raw quail eggs will change into hard-boiled eggs. The egg boiler is the most fundamental machine for the quail egg shelling line. Then, the hard-boiled quail eggs will be delivered into the cooling trough automatically.
3. Cryogenic Cooling
After the quail eggs going through the cooling conveyor trough, the temperature will go down and the shell of the quail eggs will separate from the inside egg, so it makes the shelling process much easier.
4. Breaking Shells
The process of breaking shells is the most important preparatory work of the shelling eggs, which is finished by a shells broken rotating machine. The breaking machine can easily break the quail shells and do not cause any damage to the eggs. The structure of the machine is pretty simple, which makes the machine easy to operate and maintain.

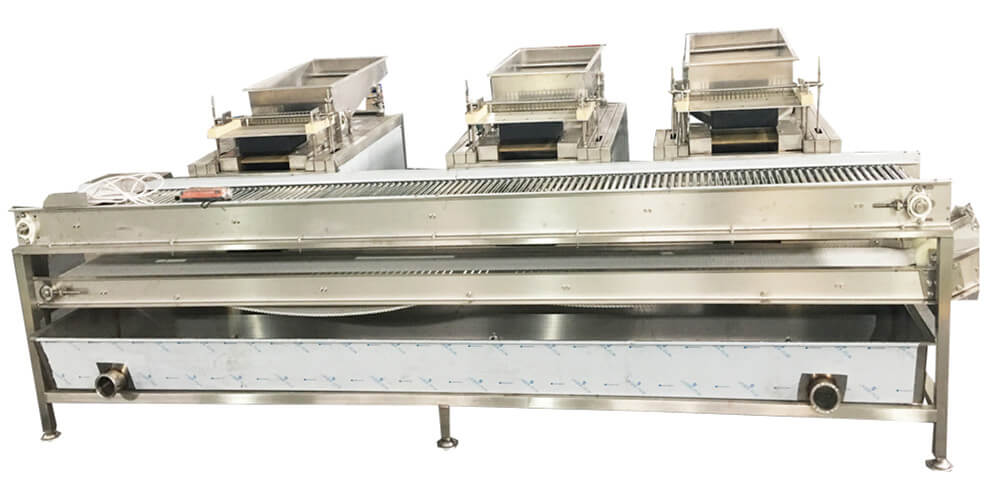

5. Quail Egg Shelling
Shelling quail eggs is the ultimate aim of the whole production line. The production capacity of the machine is more than 10,000 pieces per hour and the breakage rate is less than 1%, which is a wonderful machine for any quail eggs processing industries.
6. Shelled Egg Transporting
This is the last step of the whole quail eggs processing line. In the process, a conveyor will carry the shelled quail eggs to the prepared containers.

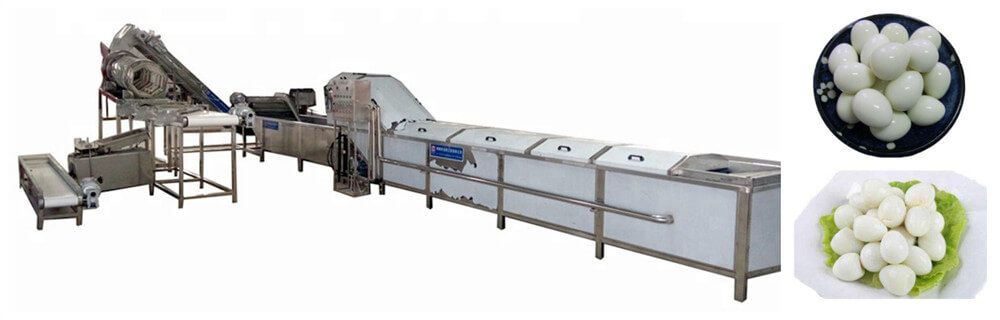

Why Is Amisy Quail Eggs Shelling Production Line?
The quail eggs shelling line is an assembly of quail egg processing, including quail egg cleaning, egg boiling, egg breaking and egg shelling, which can process the dirty and raw quail eggs into clean, hard-boiled and shell-less eggs. The related machines are manufactured with strict technology indicators and examined by the senior technicians. The whole shelling line is labour saving and efficient.
